Relay Plug-In with Indicator 24VAC
For price please call (615) 220-7165, email sales@adenus.com, or request a quote!

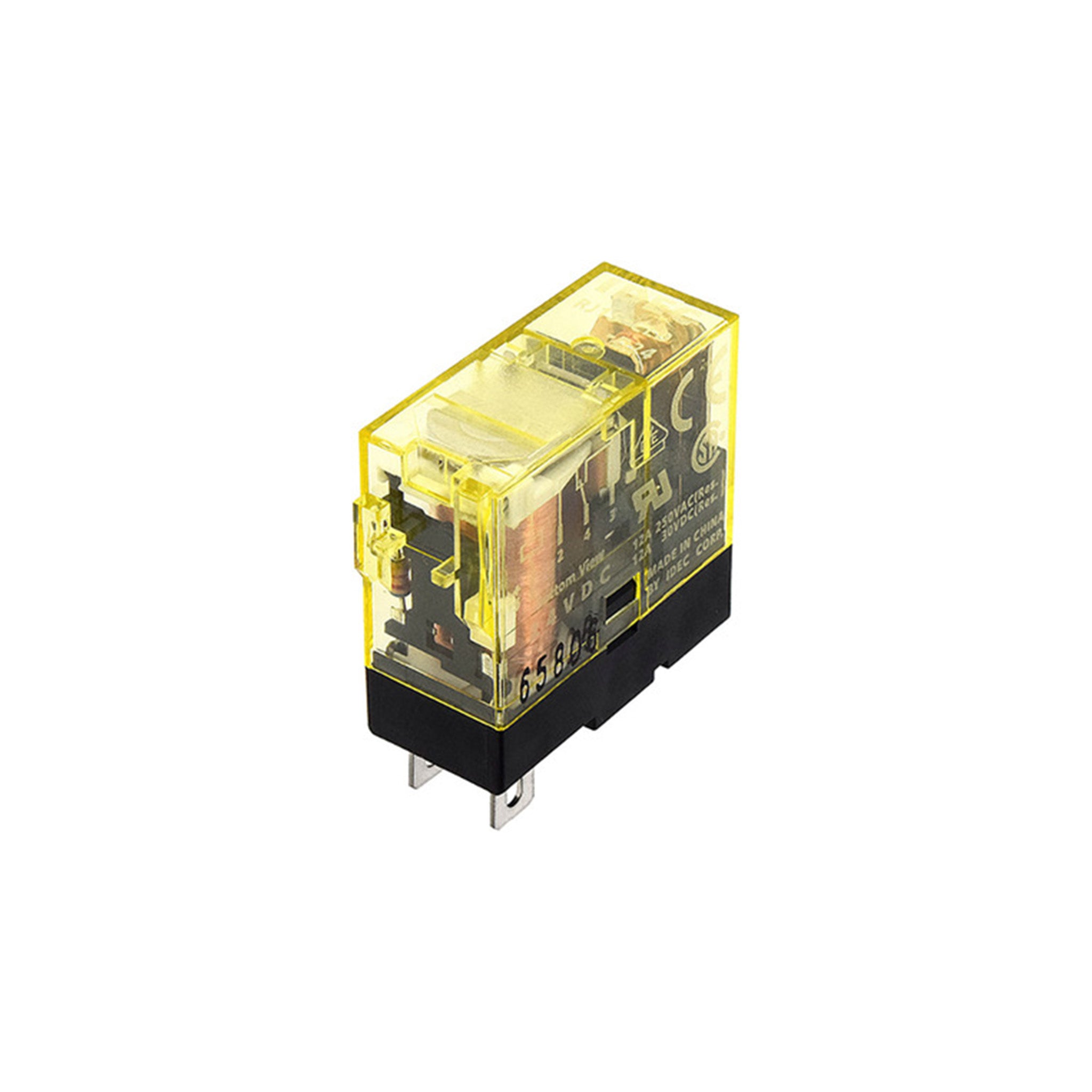

Slim electromechanical power relay with LED indic. - IDEC (RJ Series) - control voltage 19.2-33.6Vac (24Vac nom.) - Rated current 12A (resistive load; 250Vac) - 1C/O / SPDT (Single Pole Double Throw) contact - 1-pole (1P) - Blade connection - Silver-Nickel alloy (AgNi) contact - Plug-in mounting on DIN rail / PC board sckt. - IP40
Specifications
- Primary Brand: IDEC
- Main Function: Relay
- Product Series/Family Name: RJ Series
- Functions: Slim electromechanical power relay
- Design: LED indicator
- Poles: 1
- Resistance (Ω): 50mΩ max. contact resistance (measured with 1A at 5Vdc using voltage drop method) 100MΩ min. (insulation resistance; at 500Vdc)
- Rated Current: 12A (resistive load; 250Vac) ; 7.5A (inductive load; 250Vac) ; 16A (allowable switching; NO contact) ; 6A (allowable switching; NC contact)
- Rated Voltage: 5000Vac (1min) dielectric strength between contacts and coil ; 1000Vac (1min) dielectric strength between contacts of the same pole
- Connection Type: Blade connection
- Degree of Protection: IP40
- Dimensions: H33mm x W12.7mm x D31.1mm
- Ambient Air Temperature for Operation: -40...+70 °C (-40...+158°F)
- Electrical Durability (with load): (AC load; frequency 1800 cycles/hour) min. 200 000 operations ; (DC load; frequency 1800 cycles/hour) min. 100 000 operations
- Mechanical Durability (at no load): (18 000 cycles/hour) min. 30 000 000 operations
- Power Consumption: (60Hz) 0.9 VA
- Manufacturer Product Status: Commercialized
- Equivalent to: RJ1SCLA24
- Compliant with Standard(s): UL 508 ; CSA C22.2 No. 14 ; EN 61810-1
- Contacts Ongoing: Silver-Nickel alloy (AgNi)
