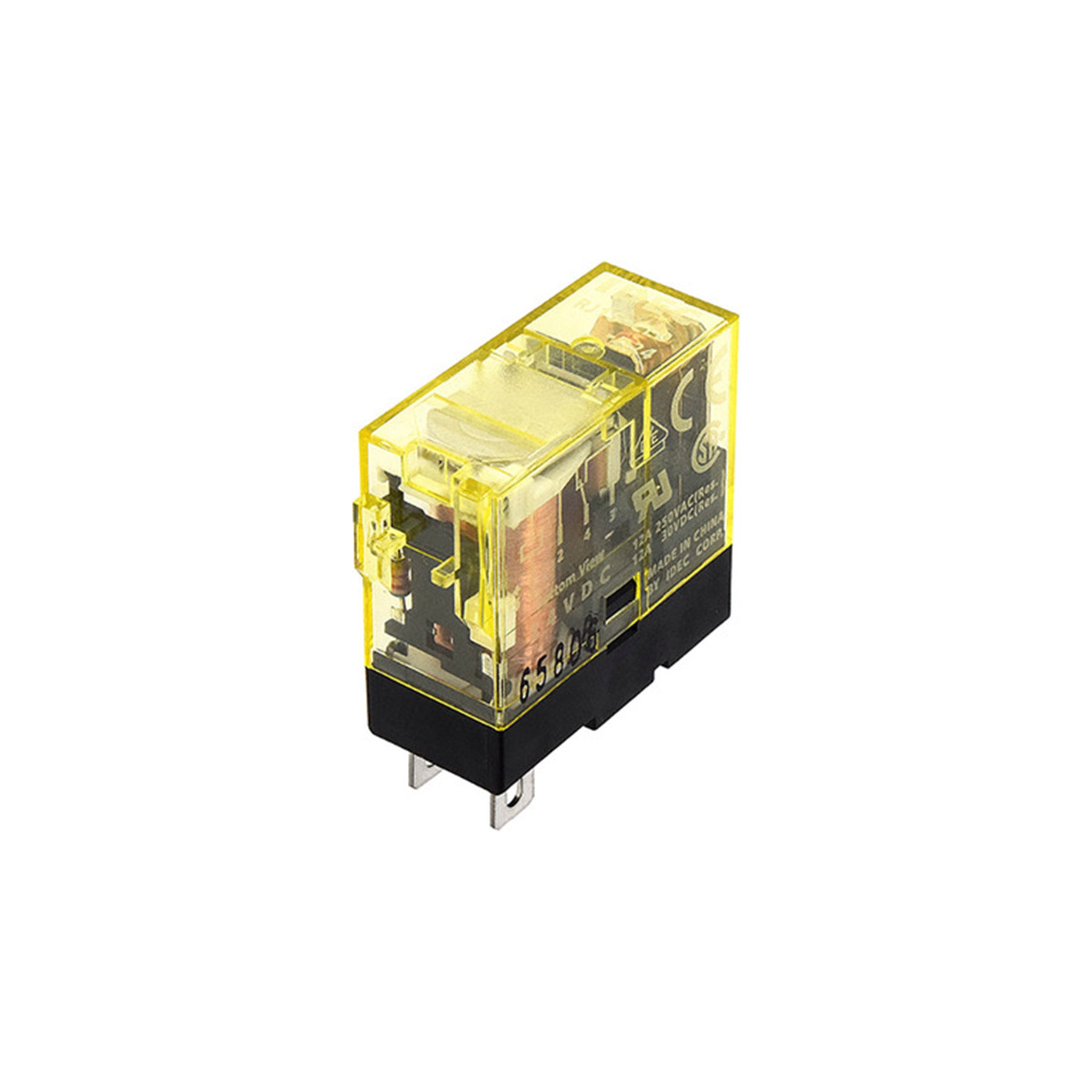

Relay Plug-In with Indicator 120VAC

Slim electromechanical power relay with LED indic. - IDEC (RJ Series) - control voltage 96-168Vac (110Vac / 120Vac nom.) - Rated current 12A (resistive load; 250Vac) - 1C/O / SPDT (Single Pole Double Throw) contact - 1-pole (1P) - Blade connection - Silver-Nickel alloy (AgNi) contact - Plug-in mounting on DIN rail / PC board sckt. - IP40

Specifications

• Primary Brand: IDEC
•  Main Function: Relay
• Product Series/Family Name: RJ Series
• Functions: Slim electromechanical power relay
• Design: LED indicator
• Poles: 1
• Resistance (Ω): 50mΩ max. contact resistance (measured with 1A at 5Vdc using voltage drop method) 100MΩ min. (insulation resistance; at 500Vdc)
• Rated Current: 12A (resistive load; 250Vac) ; 7.5A (inductive load; 250Vac) ; 16A (allowable switching; NO contact) ; 6A (allowable switching; NC contact)
• Rated Voltage: 5000Vac (1min) dielectric strength between contacts and coil ; 1000Vac (1min) dielectric strength between contacts of the same pole
• Connection Type: 1C/O / SPDT (Single Pole Double Throw) contact
• Degree of Protection: IP40
• Dimensions: H33mm x W12.7mm x D31.1mm
• Ambient Air Temperature for Operation: -40...+70 °C (-40...+158°F)
• Electrical Durability (with load): (AC load; frequency 1800 cycles/hour) min. 200 000 operations ; (DC load; frequency 1800 cycles/hour) min. 100 000 operations
• Mechanical Durability (at no load): (18 000 cycles/hour) min. 30 000 000 operations
• Power Consumption: (60Hz) 0.9 VA
• Manufacturer Product Status: Commercialized
• Equivalent to: RJ1SCLA120
• Compliant with Standard(s): UL 508 ; CSA C22.2 No. 14 ; EN 61810-1
• Contacts Ongoing: Silver-Nickel alloy (AgNi)
