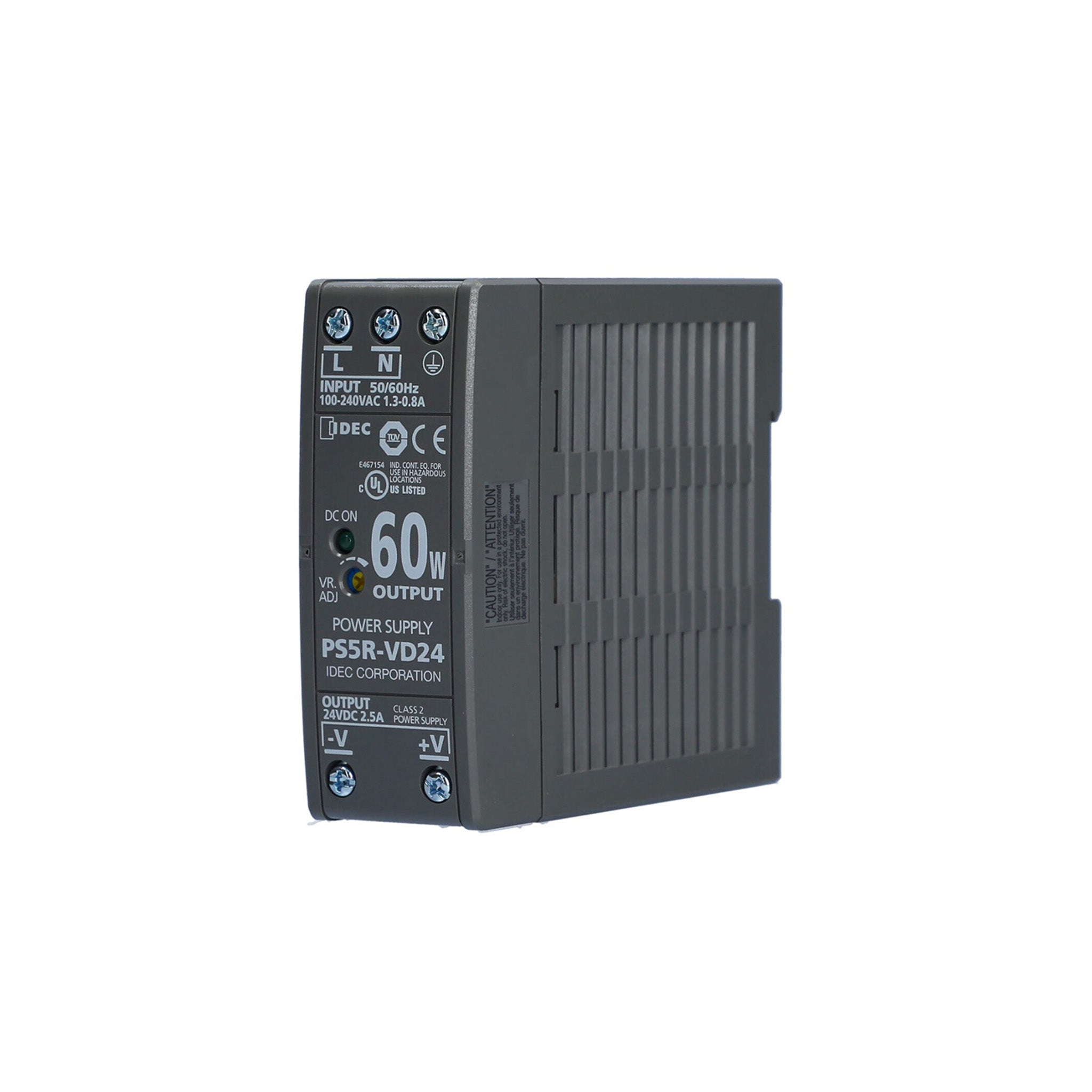

Power Supply 24VDC 2.5A
For price please call (615) 220-7165, email sales@adenus.com, or request a quote!
AC/DC Power supply unit (PSU) / converter - IDEC (PS5R-V Series) - 2.5A / 24Vdc / 60W output - Input voltage 85-264Vac (100Vac / 110Vac / 120Vac / 220Vac / 230Vac / 240Vac)/100-370Vdc (Single-phase AC (1AC) or DC) - M3.5 screw-clamp electrical connection - DIN rail mounting - IP20
Specifications
- Primary Brand: IDEC
- Main Function: Power supply unit
- Product Series/Family Name: PS5R-V Series
- Network Frequency: (Input) DC or 50-60 Hz
- Functions: AC/DC Power supply unit (PSU) / converter - Series operation possible
- Supply Voltage (AC): 85-264Vac (100Vac / 110Vac / 120Vac / 220Vac / 230Vac / 240Vac)
- Supply Voltage (DC): 100-370Vdc
- Type of Network: Single-phase AC (1AC) or DC
- Rated Current: 2.5A
- Rated Power: 60W
- Output Voltage (DC): 24Vdc
- Hold Time: 105ms (230Vac input) ; 13ms (100Vac input)
- Connection Type: M3.5 screw-clamp electrical connection
- Protection Functions: Over-current protection
- Efficiency: 0.86 (230Vac input) ; 0.86 (100Vac input)
- Net Width (mm): 36 mm
- Mounting Mode: DIN rail mounting
- Degree of Protection: IP20
- Dimensions: w36mm x H95mm x D108mm
- Ambient Air Temperature for Operation: -25...+70°C (-13...+158°F)
- Ambient Air Temperature for Storage: -25...+75°C (-13...+167°F)
- Current Consumption: 0.8A (230Vac) ; 1.3A (100Vac) ; 45A inrush (230Vac) ; 18A inrush (100Vac)
- Manufacturer Product Status: Commercialized
- Equivalent to: PS5RVD24
- Compliant with Standard(s): UL 508 ; ANSI/ISA-12.12.01 ; UL 1310 Class 2 ; CSA C22.2 No. 107.1 ; CSA C22.2 No. 213 ; CSA C22.2 No. 223 ; EN 50178 ; EN 60950-1
- Ripple: 1% (240mVpp) max. (0...+55°C)(32...+131°F) ; 1.5% (360mVpp) max. (-10...0°C)(+14...+32°F) ; 4% (960mVpp) max. (-25...+10°C)(-13...+50°F)
- MTBF (Mean Time Between Failures): 450 000h
