24VAC Surge Protector

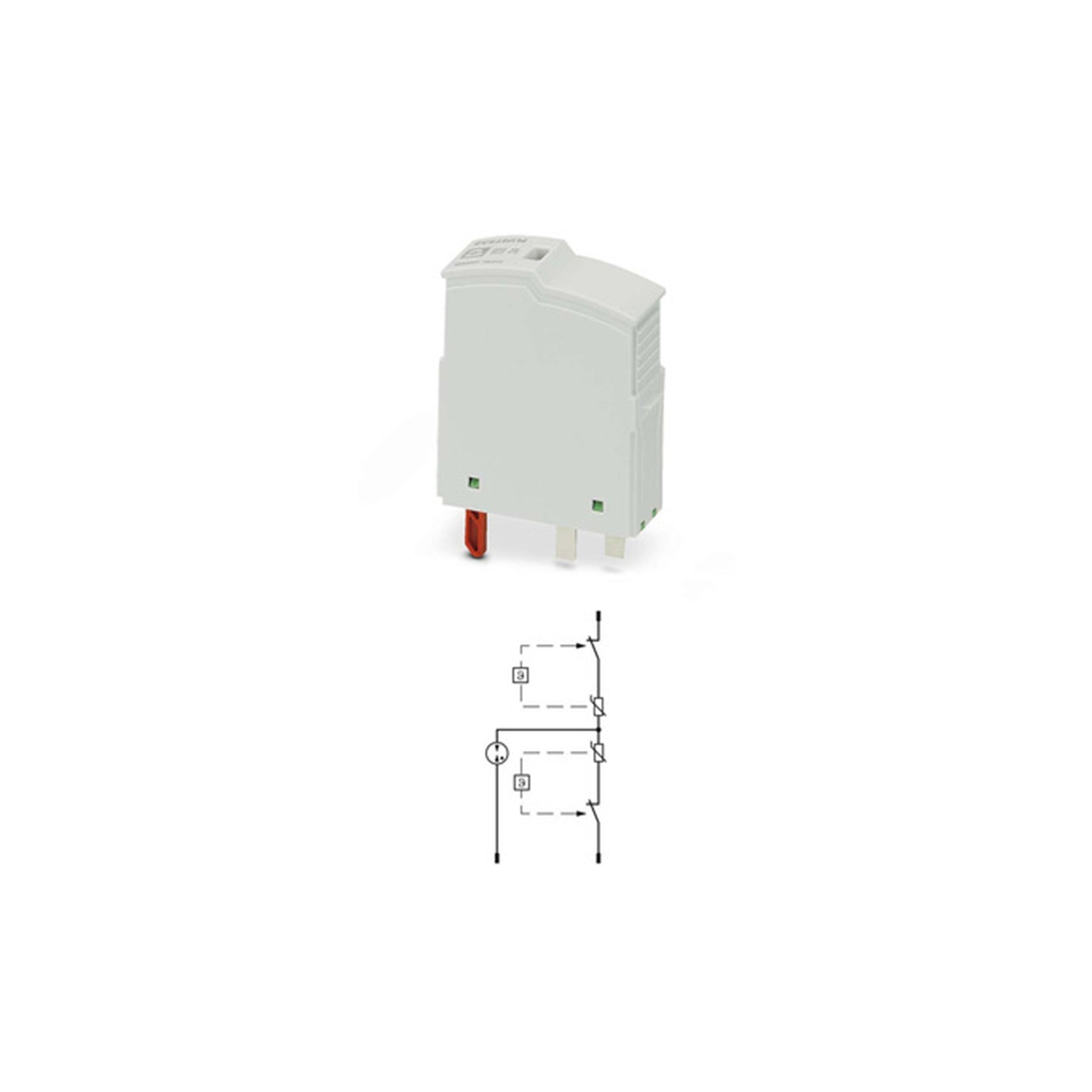

Replacement plug-in SPD cartridge with gas-filled suppressor (GDT) and MOV varistor - type 3 - Phoenix Contact (PLUGTRAB SEC series) - PLT-SEC-T3-24-P-UT/PT - Rated voltage 24Vac / 34Vdc - Maximum continuous voltage (Uc MCOV) 34Vac / 44Vdc - Maximum discharge current (Imax) 4kA - Plug-in - IP20 - with visual status indication

Specifications

• Primary Brand: Phoenix Contact
• Main Function: Spare part
• Product Series/Family Name: PLUGTAB SEC series
• Functions: Replacement plug-in SPD cartridge
• Design: Gas-filled suppressor (GDT) and MOV varistor ; type 3 ; class 3
• Color: Light grey RAL 7035
• Rated Voltage (DC): 34Vdc
• Rated Voltage (AC): 24Vac
• Maximum Continuous Operating Voltage (Uc): 34Vac/44Vdc
• Rated Discharge Current: 1kA
• Net Width (mm): 17.5mm
• Mounting Mode: Plug-in
• Response Time: (L-N) 25ns ; (L-PE) 100ns ; (N-PE) 100ns
• Degree of Protection: IP20
• Dimensions: H46.7mm x W17.5mm x D65.7mm
• Visual Position Indicator: Visual status indication
• Technical Compatibility with: PLUGTRAB-SEC series SPD base
• GTIN Code: 405562657464
• Maximum Discharge Current: 4kA
• Earthing System: TN-S
• Manufacturer Product Status: Commercialized
• Compliant with Standard(s): UL recognized ; cULus ; EAC ; IEC 61643-11 ; EN 61643-11 ; KEMA-KEUR; GL ; CB scheme ; CCA ; cUL recognized
•   Benefits: Varistor-based type 3 surge protection ; For single and three phase power supply units ; With push-in or screw connection technology ; Pluggable ; Through wiring ; Optical and mechanical status indicator ; With floating remote indication contact ; Plugs can be tested with CHECKMASTER 2
• Application Type: Surge protection for the power supply
